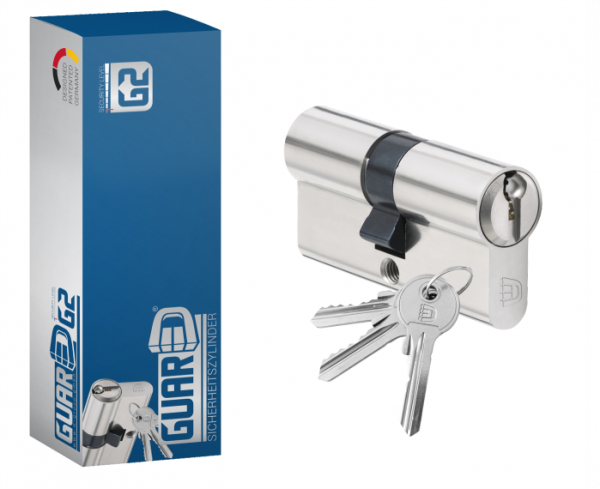

Guard G2 Door Cylinder

Description

CYLINDER Guard G2

Technology:
Door cylinder according to DIN EN 1303, DIN 18252, ISO 9001:2008
Emergency feature: The cylinder can be operated from the outside even when a key is already inserted on the inside
6-pin cylinder
Drill protection: three hardened steel pins on both sides of the cylinder body, two hardened steel pins in the plug and three hardened bottom/top pins per cylinder side
Long key neck, perfect for door fittings with cylinder protection
Service: making of door cylinders as per sample key
Supplied with 3 keys
Variants:
Finishes: NP = Nickel Pearl – dull matt brass finish, PB = Polished brass
Special versions: half cylinder, thumbturn cylinders

• Model: Guard G2
• Color: Nickel
• Material: Brass
• Dimension Code: 30/35 3035G2.N
  30/35K 3035G2.NK
  40/45 4045G2.N
